PWM Servo Amplifiers



Designed to provide reliable operation and high performance/ price ratio, these low cost, high efficiency PWM drives are ideal for OEM applications. They can be used to drive DC servo motors upto 2500W in critical speed control, braking, reversing and position control applications. The low minimum inductance spec allows for driving low inductance motors, such as printed armature types. An integral cooling fan is provided on the heat sink for operation under high ambient temperatures. They are suitable for critical speed control and position control applications, and can be supplied as multiple units with common power supply to suit individual requirements.

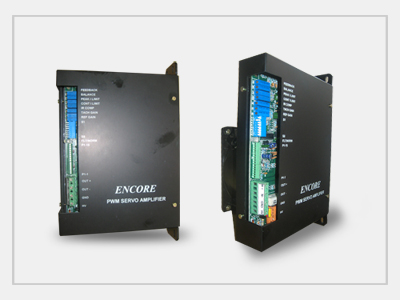

500 / 1000 / 1500 / 2500 SERVO AMPLIFIERS

Servo amplifiers suitable for use with motors upto 2500 watts. An integral cooling fan is provided on the heat sink for operation under high ambient temperatures.

Features

  • High efficiency Mosfet Drive
  • Electronic Short Circuit Protection
  • Motor Overload Protection
  • Temperature and Voltage Fluctuation Protection
  • Fault/Normal LED indicator and Output
  • Differential Command input for high noise immunity
  • Velocity or Torque protection
  • Voltage feedback with IR Comp Mode
  • Integrated cooling fan on heatsink  Requires external 220V AC power


MODEL
500
1000
1500
2500
3000
POWER
525W
1050W
1125W
2250W
2750W
VOLTAGE
70V
70V
150V
150V
110V
I AVG.
7.5 A
15 A
7.5 A
15 A
25A
I PK.
15 A
30 A
15 A
30 A
50A
SIZE*
03x230x155
103x230x155
103x230x155
103x230x155
125x240x155
WEIGHT*
1.5Kg
1.5Kg
1.5Kg
1.5Kg
2.0Kg


Specifications

  SUPPLY VOLTAGE
-
24V min. to 80/160V max.
  SWITCHING FREQ.
-
22 KHZ
  OPERATING MODES
-
Velocity, Torque, Voltage, AMP @
  INPUT VOLTAGE
-
+ / - 10V
  TACH INPUT
-
+/ - 30V
  AUX. INPUTS
-
3 Enables, Reset
  AUX. OUTPUTS
-
Fault / Normal, Current Monitor
  OVERLOAD TIME
-
4 Sec. Max.
  INPUT AMP DRIFT
-
0.05% / C
  SPEED REGULATION
-
0.05%
  ERROR DETECTION
-
Voltage Limits Current Limit Overtemp
  DEADBAND
-
Zero
  SPEED RANGE
-
1:1000
  EFFICIENCY
-
90%
  MIN. MOTOR INDUCT.
-
0.15 mH typ
  TEMP.RANGE
-
0-50 DEG. C


OPTIONS AND CUSTOMIZATION:

Units can be supplied as multiple amplifiers with common power supply to suit individual requirements. Contact us for any other customization you may need for your application.
